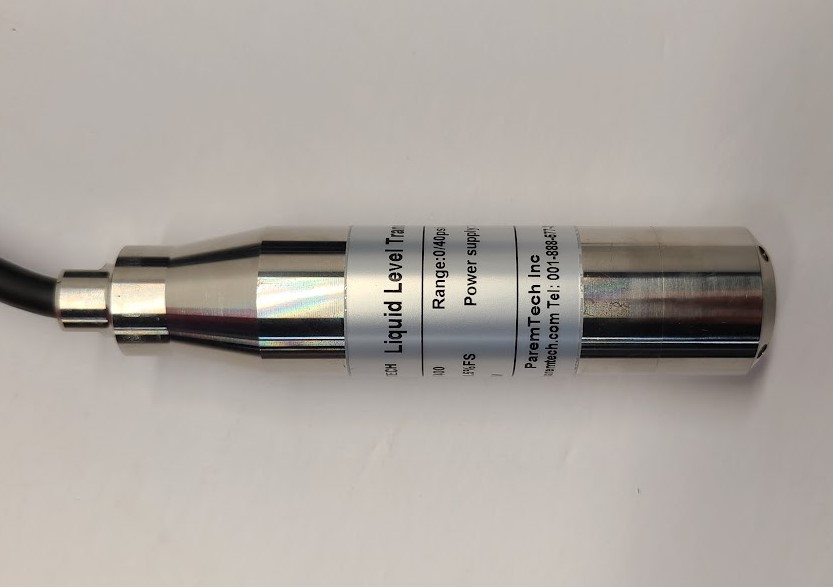

Deep Well Transducer - Up to 70' depth measurement
Sometimes people need to measure wells, cisterns, and ponds that are deeper than 18'. Because of our regular pressure design, normally the PTLevel's can only handle up to 18' of liquid pressure.

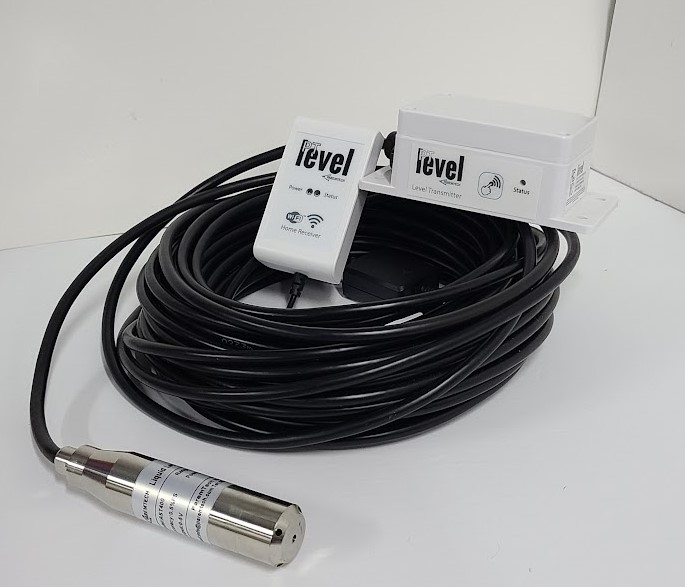

Using our same wireless technology and online dashboard, we are able to customize our PTLevel's to handle a 70' deep well transducer sensor.
Sensor Specifications:
Operating Temperature: -40 to 100 degrees Celsius
Offset Temperature: -10 to 70 degrees Celsius
Certifications: CE Certified, IP68 Certified (water tight), Intrinsic safety certification (explosion proof)
Chemical Resistant: corrosive compatible (with 1Cr18Ni9Ti and 316L)
Max 40 PSI, equaling 275 KPA (1 meter of water is around 9.81 KPA) It is normal to have ±3% due to environmental changes and the tolerances of the sensor
Pricing:
Because these sensors are made custom upon request, the supply price to us is not stable and we do need to provide individual quotes at the time of your order. You will have to contact us directly. There is also typically a 2 week lead time on these devices.
As of October 2023, the price of a Long Range Wireless PTLevel with a 70' Deep Well Transducer is around $800 CAD or $590 USD which includes shipping within Canada or the USA. (CAD is charged if you live within Canada, all other countries are charged in USD currency.)
Contact us here to order!
To see what reports, alerts, and settings look like for a Long Range Wireless PTLevel with a Deep Well Transducer, you can review all of the support articles for the Long Range Wireless here.
