The PTDevices integration allows you to integrate your PTLevel into Home Assistant. Use cases include:

• Send notifications for low level or excessive usage.
• Setup Automations to turn off pumps when running low.
• Setup Automations to run appliances after water has been delivered.

Supported devices

• PTLevel Long Range Wireless
• PTLevel Long Range Wireless - Septic
• PTLevel Long Range Wireless - Deep Well
• PTLevel Wired Wifi
• PTLevel Wired Wifi - Septic
• PTLevel Wired Wifi - Temperature Probe

Prerequisites

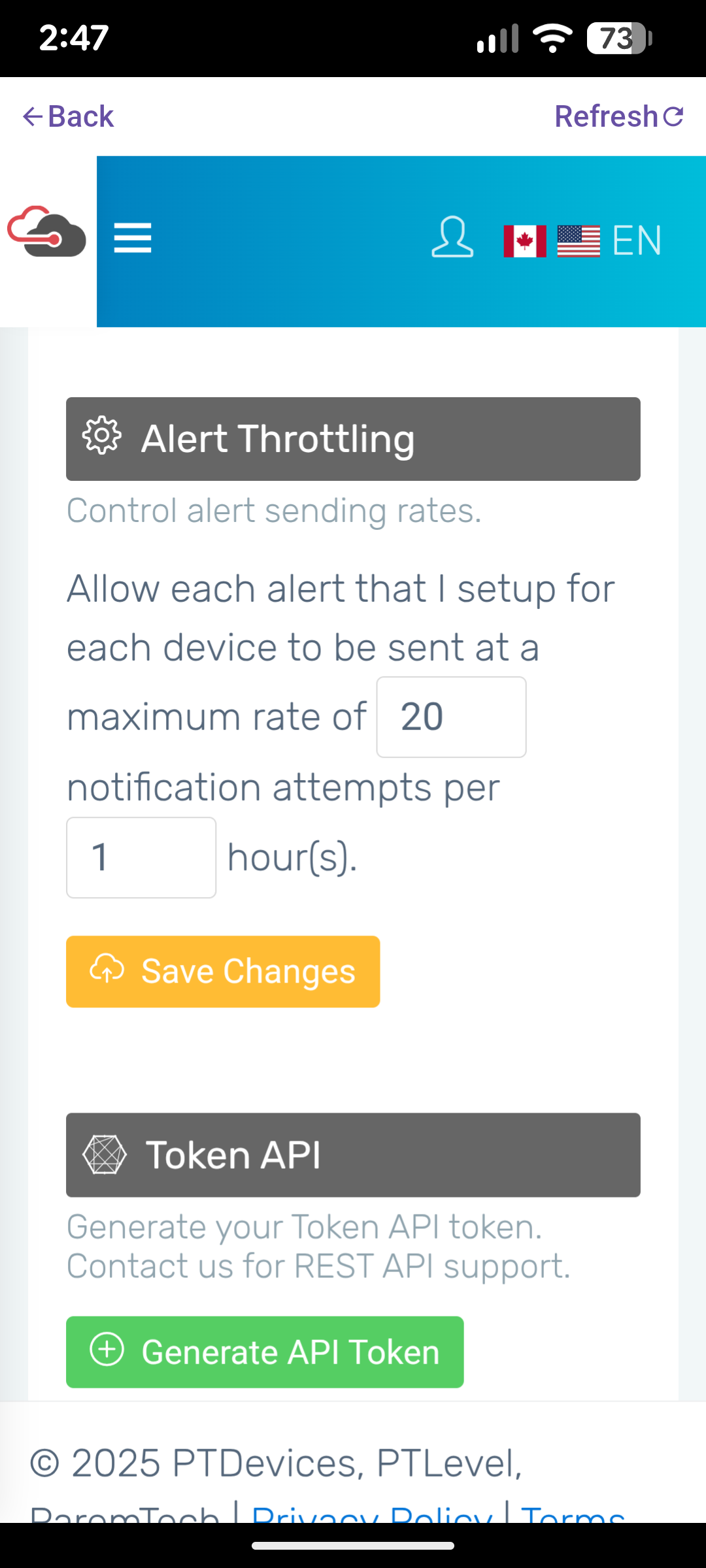

You will need to create a token for your PTDevices account if you haven’t done so already. If you have already generated a Token API token, you don’t need to generate another one.

1. Log in to your PTDevices account that contains the devices you wish to integrate.
2. Go to the My Account page from the left hand side menu or https://www.ptdevices.com/profile.
3. Go to the Settings page from the top menu.
4. At the bottom of this page, select the Regenerate API Token button.
5. Copy the generated API token to a safe location. This API token will be used when setting up the PTDevices integration in Home Assistant.

Configuration

To add the PTDevices hub to your Home Assistant instance, use this My button:

Examples

Send a push notification when Low on water

alias: "PTDevice - Low Level Notification"
description: "Notify when the level drops below a set level"
mode: single
triggers:
  - trigger: numeric_state
    entity_id:
      - sensor.TARGET_PTDEVICE_level_percent
    below: 15
conditions: []
actions:
  - action: notify.TARGET_MOBILE_DEVICE
    data:
      message: "Your PTDevice has dropped below 15%, its time to order water."
      title: "Your PTDevice is below 15%"

Replace TARGET_PTDEVICE and TARGET_MOBILE_DEVICE with your actual devices.

Supported functionality

The PTDevices integration provides the following entities.

Sensors

• Level depth:
  • Description: The depth of the remaining fluid.
  • Available for models: All
  • Unit: Meters
• Level percent:
  • Description: The remaining level in percent.
  • Available for models: All
  • Unit: %
• Level volume:
  • Description: The volume of remaining fluid.
  • Available for models: All
  • Unit: Liters
• Probe temperature:
  • Description: The current temperature measured by the external temperature probe.
  • Available for models: PTLevel Wired Wifi With Temperature Probe
  • Unit: °C
• Status:
  • Description: The current status of the device. For example, Working or Not connected.
  • Available for models: All
• Battery voltage:
  • Description: The current voltage reading of the onboard batteries.
  • Available for models: All battery powered models
  • Remarks: Disabled by default for advanced uses.
  • Unit: Volts
• Wi-Fi signal strength:
  • Description: The signal strength of the WiFi at the receiver/WiFI device.
  • Available for models: All
  • Remarks: Disabled by default for advanced uses.
  • Unit: dBm
• LoRa signal strength:
  • Description: The signal strength between the receiver and transmitter.
  • Available for models: PTLevel Long Range Wireless Only
  • Remarks: Disabled by default for advanced uses.
  • Unit: dBm

Data updates

The integration polls data from PTDevices every 60 seconds by default.

Known limitations

• This integration does not allow you to change the settings of the device. You must go to PTDevices.com to change device settings.

Removing the integration

This integration follows the standard integration removal. No extra steps required.

To remove an integration instance from Home Assistant

1. Go to Settings > Devices & services and select the integration card.
2. From the list of devices, select the integration instance you want to remove.
3. Next to the entry, select the three dots
   menu. Then, select Delete.
